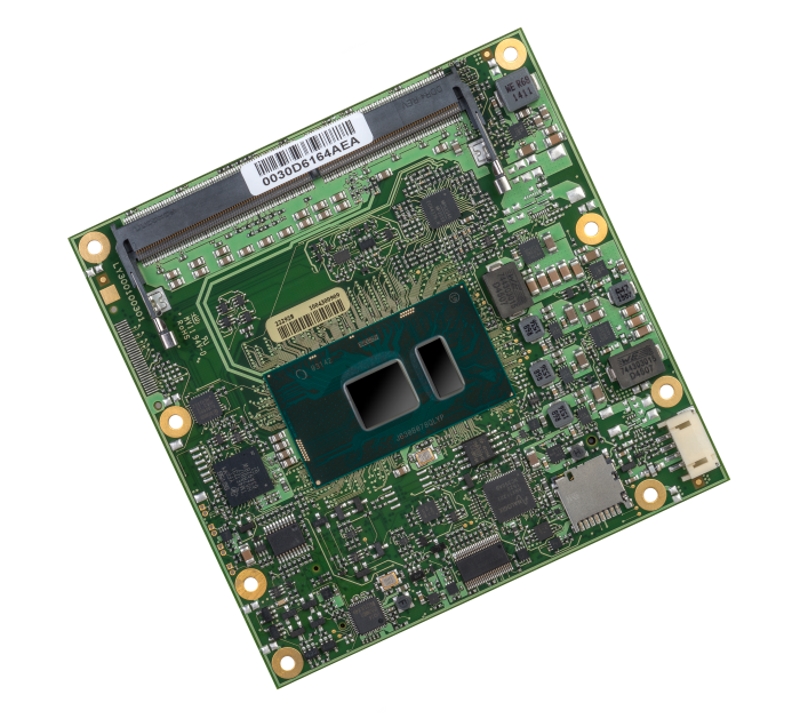

MSC C6C-KLU

Intel® Core™ 7th Generation

The MSC C6C-KLU module is based on Intel‘s 7th generation Core processor family. The Intel multi-chip-package in 14 nm technology includes processor, graphics and chipset on one carrier and allows extreme compact high-performance designs. The new MSC C6C-KLU brings triple independent display support with up to 4k x 2k resolution, highest level graphics acceleration and hardware based video en-/decoding. Fast DDR4 memory and multiple USB 3.0/2.0 interfaces complete the compact and power saving module. Different dual-core processors are supported by this design. Besides an extensive set of interfaces and features, the MSC C6C-KLU optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group). The Type 6 pin-out allows direct access to the latest digital display interfaces like DisplayPort, HDMI 1.4b and DVI as well as up to four USB 3.0 interfaces supporting the fastest peripherals currently available.

Highlights

Intel Core i7-7600U dual-core 2.8/3.9GHz, 4MB L2, 15W TDP
Intel Core i5-7300U dual-core 2.6/3.5GHz, 3MB L2, 15W TDP
Intel Core i3-7100U dual-core 2.4GHz, 3MB L2, 15W TDP
Intel Celeron 3965U dual-core 2.2GHz, 2MB L2, 15W TDP
Integrated Intel® HD Graphics 610, 620
Up to 32 GB DDR4-2133 SDRAM, dual-channel
Three SATA 6Gb/s mass storage interfaces
MicroSD card socket
Two DisplayPort/HDMI/DVI interfaces

Embedded DisplayPort / LVDS (24 Bit, dual channel) interface
Three independent displays supported
DirectX 12, OpenGL 4.4, OpenCL 2.x
Resolution up to 4096 x 2304
Four USB 3.0/2.0 and four USB 2.0 interfaces
Eight PCI Express™ x1 lanes
Trusted Platform Module
UEFI Firmware

Specs

Technology	x86
Formfactor	COM Express Compact
CPU	Intel Core i7-7600U dual-core 2.8/3.9GHz, 4MB L2, 15W TDP Intel Core i5-7300U dual-core 2.6/3.5GHz, 3MB L2, 15W TDP Intel Core i3-7100U dual-core 2.4GHz, 3MB L2, 15W TDP Intel Celeron 3965U dual-core 2.2GHz, 2MB L2, 15W TDP
Chipset	Integrated in Multi-Chip-Package
RAM	2x 260-pin SO-DIMM socket for up to 2x 16 GB DDR4 SDRAM (DDR4-2133); dual channel operation
Flash	MicroSD card socket
Storage Interfaces	Up to 3x SATA 6Gb/s
USB	4x USB 3.0/2.0 4x USB 2.0
Serial Interfaces	2x high-speed serial ports from PCH
Bus Interfaces	8x PCI Express x1 Gen 3 LPC bus (Low Pin Count bus; no DMA support)
Display Controller	Integrated Intel HD graphics Gen. 9 3D Acceleration: DirectX® 11/12, OpenGL 4.3/4.4, OpenGL ES 2.0, OpenCL 2.x; Video Decode: H.264 @ Level 5.2, H.265/HEVC 10-bit, MPEG2, VC1/WMV, JPEG, VP8, VP9 10-bit; Video Encode: H.263, H.264, VP8, AVC JPEG, VP9 GPU-accelerated. Triple independent display support
Display Interfaces	Display Port and HDMI/DVI: 2x Digital Display Interface, usable as DisplayPort 1.2 (up to 4096 x 2304 @ 60Hz), also usable as HDMI 1.4 or DVI (up to 4096 x 2160 @ 30Hz) 1x Embedded DisplayPort 1.4 (on variants without LVDS only); 4096 x 2304 @ 60Hz LCD: LVDS 24bit, dual-channel (not on all variants); 1920 x 1200 @ 60Hz
Network Interface	10/100/1000Base-TX (Intel i219)
Audio Interface	High Definition Audio
Security Device	TPM 1.2
Miscellaneous	Watchdog Timer: Initiates system reset, programmable Fan Supply: 4-pin header for CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: external System Monitoring: voltage, temperature, CPU fan, system fan
Feature Highlights	Type 6 pin-out
Firmware	UEFI Firmware: AMI Aptio® V Security: TPM 1.2 support, TCG compliant Power Management: ACPI Active fan control USB: USB legacy support (keyboard, mouse, storage) Monitoring: System Monitoring Health Monitoring MSC Adv. Boot Device Selection: Boot device priority setting based on physical interfaces
OS Support	Windows 10 (embedded) BSP for Linux (Yocto) EAPI (HW Programming Interface)
Power Requirement	12V +-5%, 5V Stby optional, 17 W to 19 W (typ.)
Environment	Ambient Temperature; 0° … 60°C (operating), -25° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing)
Dimensions	95mm x 95mm
Certificates	UL / CE

Order Info

Order No.	Description	Reference	Status
70278	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel Celeron 3965U, dual-core, 2.2GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT1); LVDS; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-3965U-NN201C PCBFTX	OR
82915	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel Celeron 3965U, dual-core, 2.2GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT1); LVDS; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 2x SATA, 4x USB3, 4x USB2, 2x PCIe Gen 3 x4; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-3965U-NN211C PCBFTX	OR
70268	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel i3-7100U, dual-core, 2.4GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT2); LVDS; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-7100U-NN201C PCBFTX	OR
70276	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel i5-7300U, dual-core, 2.6/3.5GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT2); LVDS; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-7300U- NN201C PCBFTX	OR
70270	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel i7-7600U, dual-core, 2.8/3.9GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT2); LVDS; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-7600U- NN201C PCBFTX	OR
70274	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel Celeron 3965U, dual-core, 2.2GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT1); eDP; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-3965U-NN101C PCBFTX	OR
70280	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel i3-7100U, dual-core, 2.4GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT2); eDP; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-7100U-NN101C PCBFTX	OR
70266	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel i5-7300U, dual-core, 2.6/3.5GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT2); eDP; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-7300U-NN101C PCBFTX	OR
70272	COM Express Type 6 Compact module (95mm x 95mm); CPU: Intel i7-7600U, dual-core, 2.8/3.9GHz, 15W TDP; Graphics: integrated Intel HD Gen 9 (GT2); eDP; 2x DP/HDMI/DVI; Ethernet: Intel i219 Gbit; HD audio; 3x SATA, 4x USB3, 4x USB2, 8x PCIe x1 Gen 3; 2x socket for DDR4 SO-DIMM.	MSC C6C-KLU-7600U-NN101C PCBFTX	OR

PV = Preferred variant; OR = on Request (in OEM quantities only)

Accessories

Carrier Options

Order No.	Description	Reference
67295	COM Express Type 6 Evaluation Carrier Board with PCI Express x4/x16 slot, USB 3.0/2.0, GbE, SATA, DisplayPort, eDP/LVDS, VGA and HD audio interfaces; Mini PCI Express socket, SD card slot, ATX power connector and single 12V power jack. Dimensions: 170mm x 170mm (Mini-ITX form factor)	MSC C6-MB-EV-001 PCBFTX
41857	COM Express Type 6 Evaluation Carrier Board with various PCI Express x1, x4 and x16 slots, USB 3.0/2.0, GbE, SATA, DisplayPort, HDMI, LVDS, eDP, VGA, HD audio interfaces; mSATA and Mini PCI Express sockets, POST code display, ATX power connector. Dimensions: 305 x 244 mm (ATX form factor)	MSC C6-MB-EVA PCBFTX

Cooling Options

Order No.	Description	Reference
1129634	Active Heatsink for C6C-SLU and C6C-KLU, consisting of a single-piece aluminum profile with fins, milled standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to SOC. PWM fan 80x80x15mm.	MSC C6C-SLU-01 HSF-001
1129633	Passive Heatsink for C6C-SLU and C6C-KLU, consisting of a single-piece aluminum profile with fins, milled standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC.	MSC C6C-SLU-01 HSI-001
1129631	Heatspreader for C6C-SLU and C6C-KLU. Single-piece aluminum profile, milled standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC.	MSC C6C-SLU-01 HSP-001
1129632	Heatspreader for C6C-SLU and C6C-KLU. Single-piece aluminum profile with milled standoffs with M2.5 thread, screws and thermopad for the thermal contact to SOC.	MSC C6C-SLU-02 HSP-001

Memory Options

Order No.	Description	Reference
83002	4GB DDR4-2400 SoDimm, 1.2V	M4SI-4GSSNCSJ-F
81883	8GB DDR4-2400 SoDimm, 1.2V	M4SI-8GSSOCSJ-F

Starter Kits

Order No.	Description	Reference
68454	Starterkit for COM Express Type 6 modules MSC C6C-SLU/KLU with Intel 6th/7th generation Core processors (Skylake U, Kaby Lake U). Consists of the MSC C6-MB-EV Mini-ITX platform board, suitable Heatsink with fan, two memory modules and a suitable power supply with cable kit. Please order separately the COM Express C6C-SLU/KLU module of your choice.	MSC C6-SK-SLU-EV-KIT001 BRDFTX
